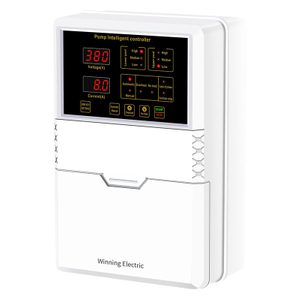

1HP-5.5HP Intelligent Water Pump Motor Starter Controller

  • Y1-4000D

  • LXBKZ

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

1

Y1 three phase LCD display simplex water control box is used in the automation of the machinery in pump motor control applications that are a part of water-based systems.It can effectively control and protect centrifugal pumps,submersible pumps,multi-stage pumps,deep well pumps,drainage pumps,booster pumps,pipeline pumps,and etc.


Typical application scenarios:

-Agricultural irrigation/ pumping

-Pressure Booster Systems

-Waste water treatment

-Water Tanks/Wells

-Drainage System

-Cooling Towers

-Flood Control

-Fishing Boat

详情_01微信图片_20241113112416 - 副本详情_03详情_06详情_07详情_08详情_09详情_10

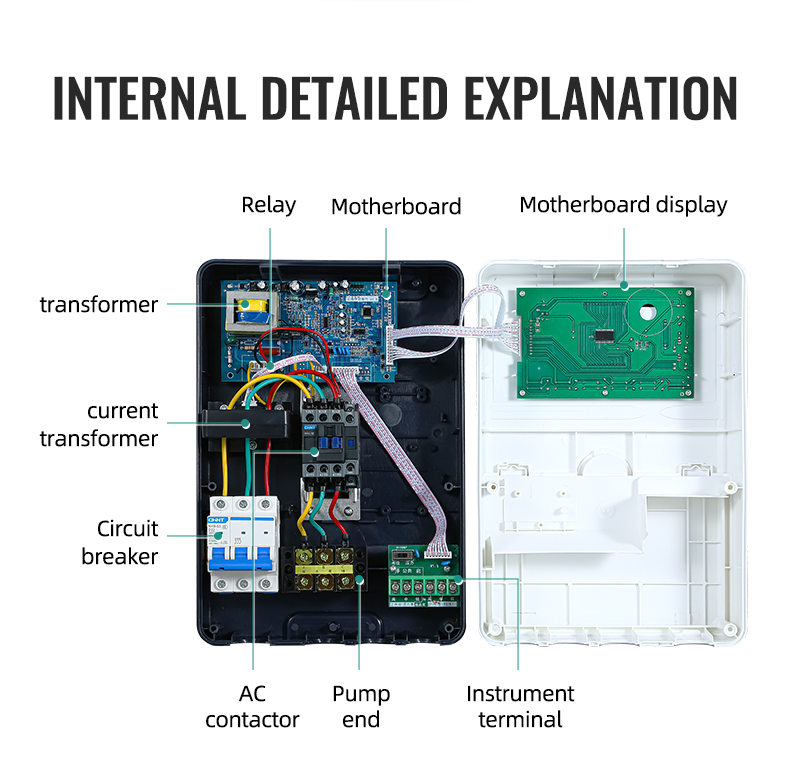

详情_11

详情_12详情_13详情_14详情_15

详情_17 - 副本详情_16

Specifications of water pump controller

Type Y1
Model Y1-4KW Y1-7.5KW Y1-11KW Y1-15KW Y1-18.5KW Y1-22KW
Rated Power 0.75-4KW 1.1-7.5KW 1.1-11KW 2.2-15KW 3-18.5KW 4-22KW
Rated Input Voltage 380V±10%/50Hz or 60Hz
Qty.of Controlled Pump Single pump
Display LCD display

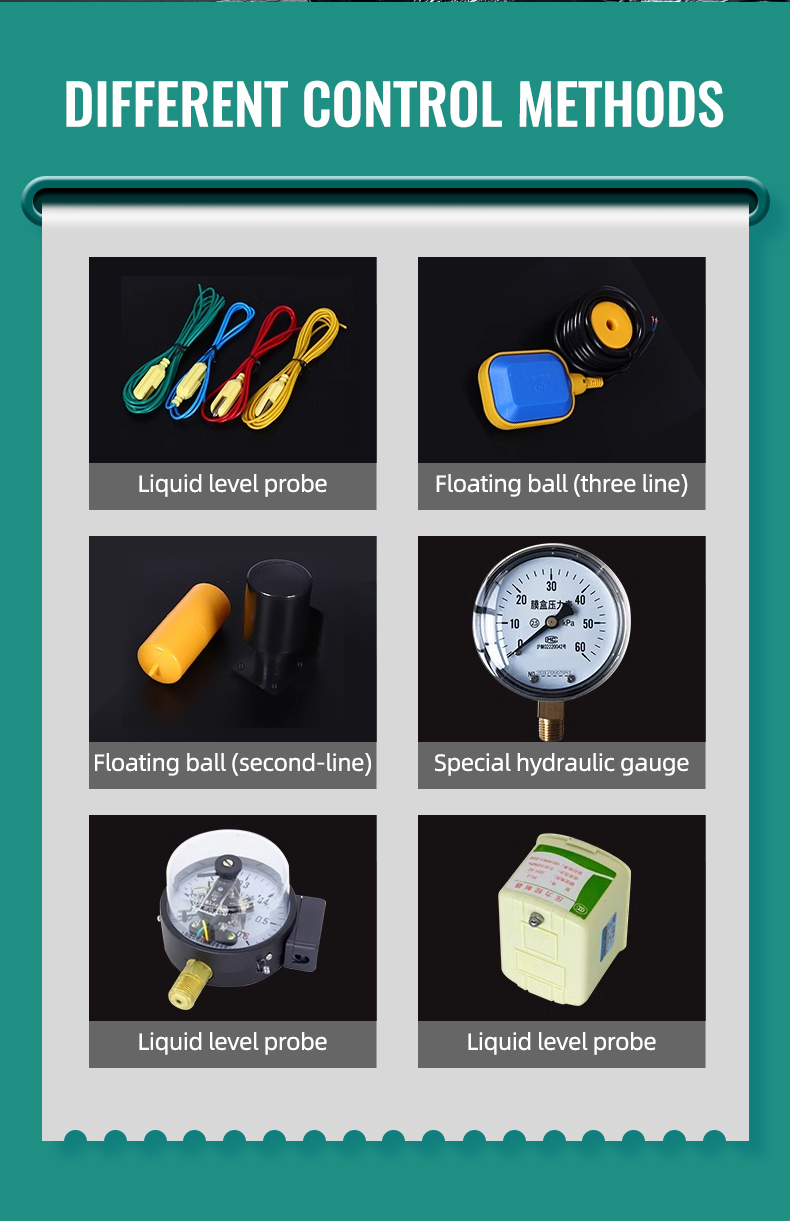

Signal Transmission Mode Level float switch                                                                                    Level probe
Pressure switch
Electric contact pressure gauge
Water Level Indication High/Middle/Low
Max.Control Distance ≤2000m without strong electric and electromagnetic fields
Over/under-voltage Range 304V-456V(adjustable)
Protections Pump stalled protection
Dry run protection
Over-load protection
Under-voltage protection
Over-voltage protection
Open phase protection
Short circuit protection
Main Functions Time setting
Fault detection
Anti-rust inspection
Automatic restart after power recovery
Working temperature
Working humidity
Degree of protection
Install position
-25ºC-- +55ºC
20%--90%RH, no drips concreted
IP22
Wall mounting
Product Size 320x220x125mm
Package Box size:26.2*17.2*38cm
Carton size:54*39.5*55.5cm
PCS/CTN:6

通用_01通用_02通用_03通用_04品牌_04品牌_05

通用_06 - 副本 - 副本品牌_07_791_748_748_748

通用_11通用_08通用_14品牌_12品牌_13品牌_15




FAQ

1)How does your factory do the quality control?
  Our production process follow up the ISO standard and we control the product quality from the raw materials to the finished product,each of our control panel will be fully assembled and strictly tested before packing and shipping.

2),What is the approximate life time for your control panel?
  The designed life time of control panel is 8 years.

3),What is your after sales service policy?
  According to the ordering quantity ,we will give some free spare parts or controller for maintenance or replacement and we will give technical training.takes 3-5 days for sample orders,and 15-20 days for orders.

4),How can I trust you ?
  We have being devoting the pump control panel manufacturing and selling since 2016,now our company has been audited and approved ISO9001 and CE certification.Many pump supplier are using our controller to control and protect their pumps and motors.We can show you our workshop and welcome your visit to our factory.

5),What's your main market?
  Asia/Europe/Middle East/North and south America/Africa etc.

6),How is the payment?
  T/T  L/C
