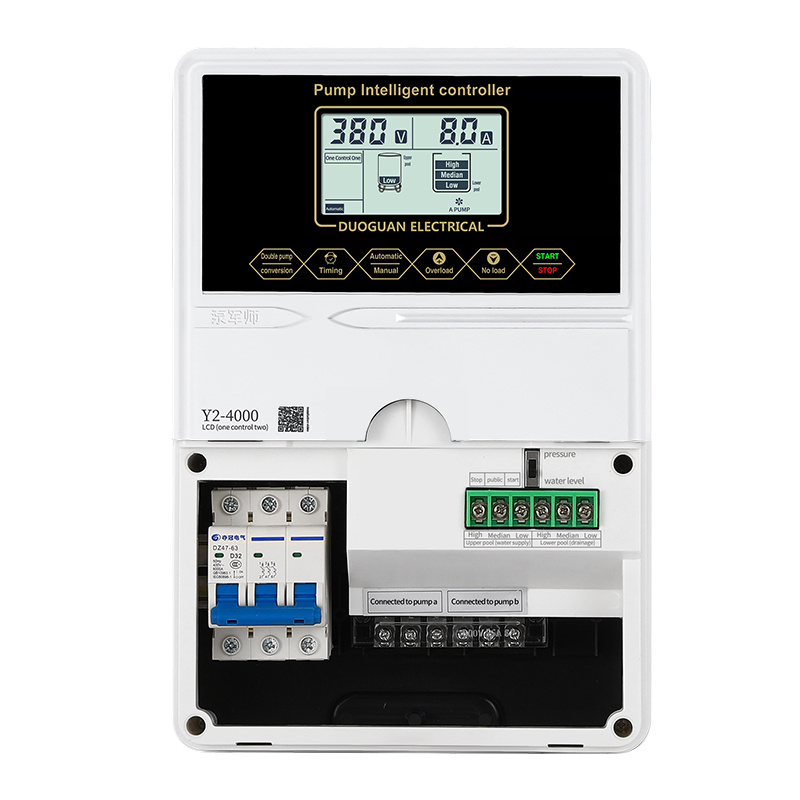

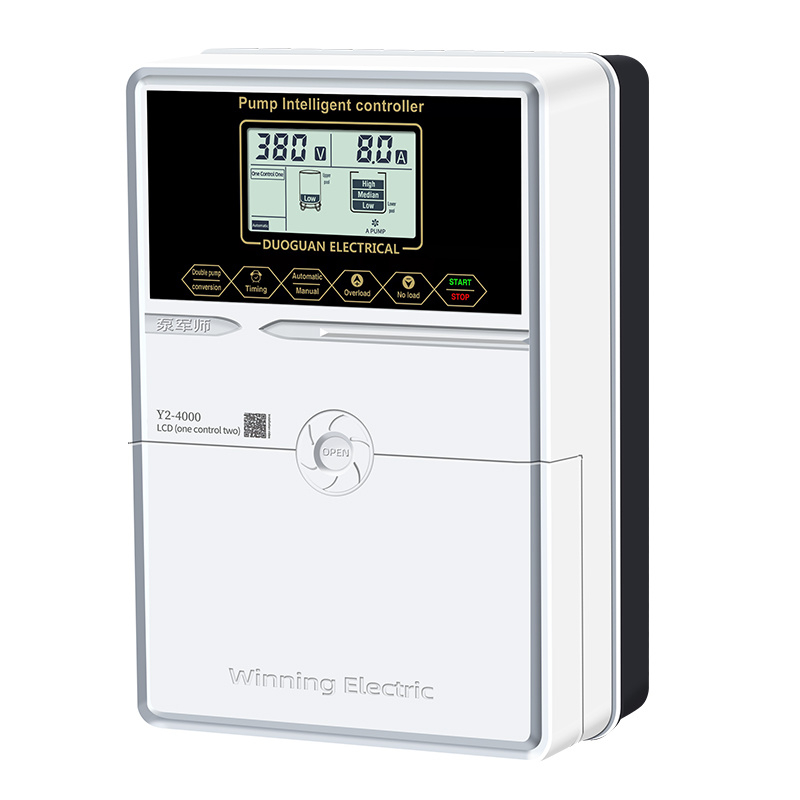

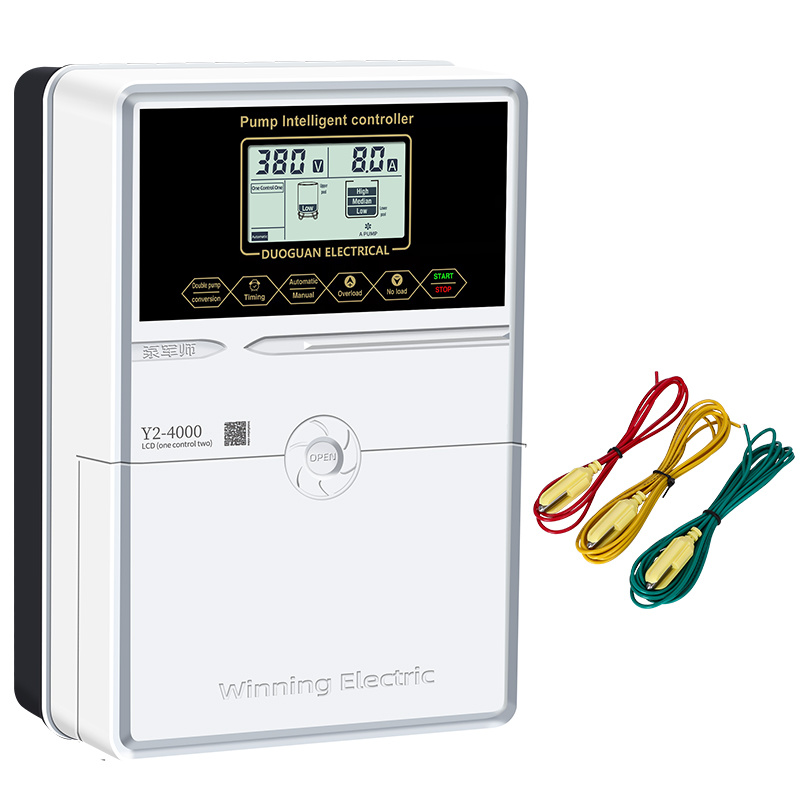

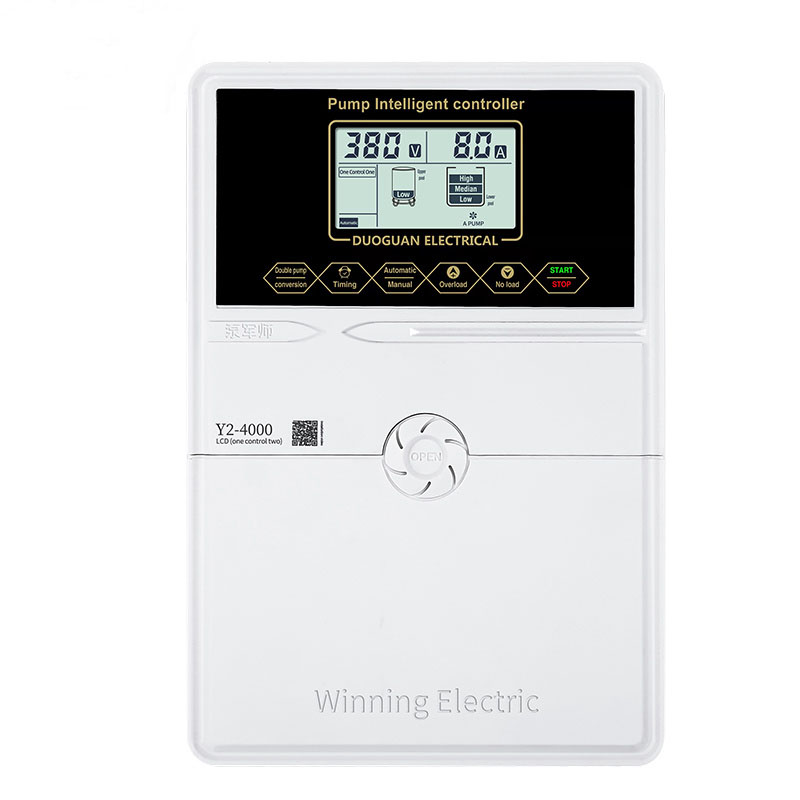

Winning designs and builds Control Panels for pump control and protection in irrigation systems, sewage, transfer pumping, wastewater lift stations, pump houses, pump chambers, septic tanks, sand filters, pond aerations and fountain control.Y series is the automatic LCD display pump controller with Y1 for single pump and Y2 for twin pumps.
Typical application scenarios:
-Agricultural irrigation/ pumping
-Pressure Booster Systems
-Waste water treatment
-Water Tanks/Wells
-Drainage System
-Cooling Towers
-Flood Control
-Fishing Boat
Specifications of water pump controller
| Type | Y2 | ||
| Model | Y2-4KW | Y2-7.5KW | Y2-11KW |
| Rated Power | 0.75-4KW | 1.1-7.5KW | 1.1-11KW |
| Rated Input Voltage | 380+10%/50Hz or 60Hz | ||
| Qty.of Controlled Pumps | Dual pumps | ||
| Display | LCD display | ||

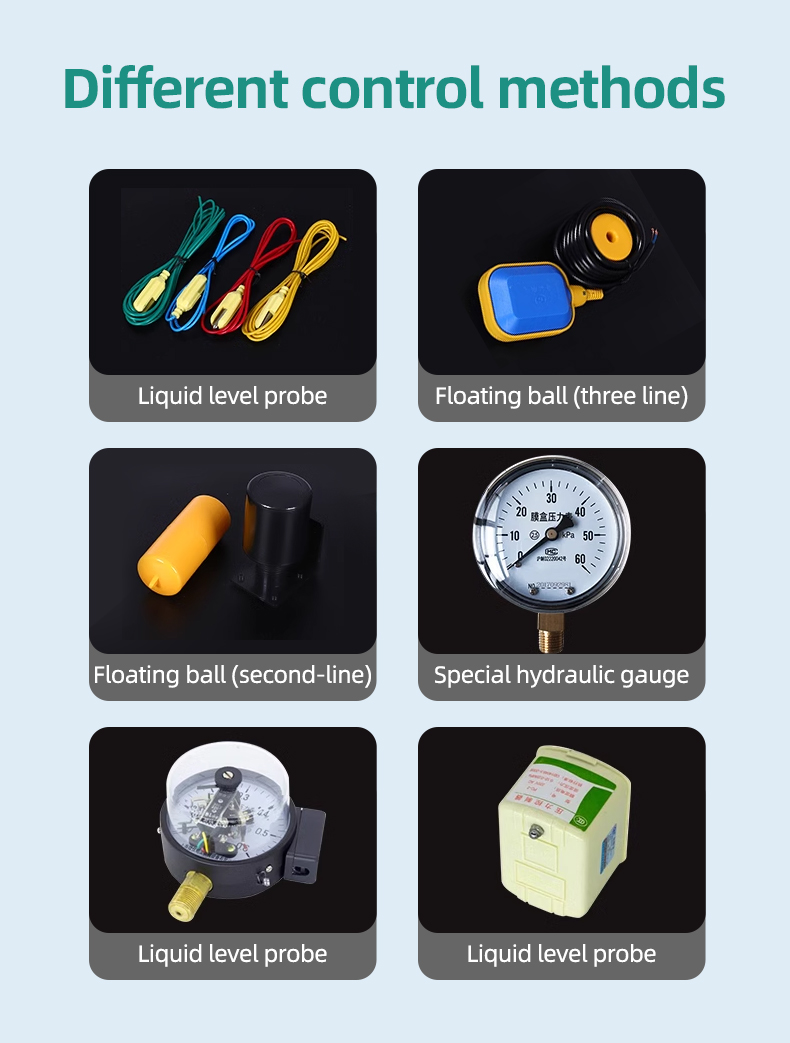

| Signal Transmission Mode | Level float switch Level probe Pressure switch Electric contact pressure gauge | ||
| Water Level Indication | High/Middle/Low | ||
| Max.Control Distance | ≤2000m without strong electric and electromagnetic fields | ||
| Over/under-voltage Range | 304-456VAC(adjustable) | ||
| Protections | Pump stalled protection Dry run protection Over-load protection Under-voltage protection Over-voltage protection Open phase protection Short circuit protection | ||
| Main Functions | Time setting Fault detection Anti-rust inspection Dual pump rotation Automatic restart after power recovery | ||
| Working temperature Working humidity Degree of protection Install position | -25ºC-- +55ºC 20%--90%RH, no drips concreted IP22 Wall mounting | ||
| Product Size | 400x300x190mm | ||
| Package | Box size:26.2*17.2*38cm Carton size:54*39.5*55.5cm PCS/CTN:6 | ||
1)How does your factory do the quality control?
Our production process follow up the ISO standard and we control the product quality from the raw materials to the finished product,each of our control panel will be fully assembled and strictly tested before packing and shipping.
2),What is the approximate life time for your control panel?
The designed life time of control panel is 8 years.
3),What is your after sales service policy?
According to the ordering quantity ,we will give some free spare parts or controller for maintenance or replacement and we will give technical training.takes 3-5 days for sample orders,and 15-20 days for orders.
4),How can I trust you ?
We have being devoting the pump control panel manufacturing and selling since 2016,now our company has been audited and approved ISO9001 and CE certification.Many pump supplier are using our controller to control and protect their pumps and motors.We can show you our workshop and welcome your visit to our factory.
5),What's your main market?
Asia/Europe/Middle East/North and south America/Africa etc.
6),How is the payment?
T/T L/C
