Automatic single phase single pump control unit 20Y is an easy-to-use programmable control unit used for the control and protection of single-phase water pumps in the range of 0.37 KW-3KW (0.5 HP-4HP) or direct-start various pumps.
Typical application scenarios:
-Agricultural irrigation/ pumping
-Pressure Booster Systems
-Waste water treatment
-Water Tanks/Wells
-Drainage System
-Cooling Towers
-Flood Control
-Fishing Boat
Specifications of water pump controller
| Type | 20Y | |
| Model | 20Y-2.2KW | 20Y-3KW |
| Rated Power | 0.37-2.2KW | 0.37-3KW |
| Rated Input Voltage | 220V or 110V, 50Hz or 60Hz | |
| Qty.of Controlled Pump | Single pump | |
| Display | LCD display | |

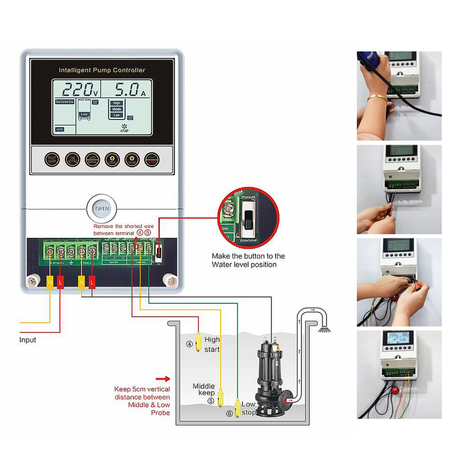

| Signal Transmission Mode | Float switch Level Probe Pressureswitch Electric contact pressure gauge | |
| Water Level Indication | High/Middle/Low | |
| Max.Control Distance | ≤2000m without strong electric and electromagnetic fields | |
| Over/under-voltage Range | 176V-264V(adjustable) | |
| Protections | Pump stalled protection Dry run protection Over-load protection Under-voltage protection Over-voltage protection Open phase protection Short circuit protection | |
| Main Functions | Time setting Fault detection Anti-rust inspection Automatic restart after power recovery | |
| Working temperature Working humidity Degree of protection Install position | -25ºC-- +55ºC 20%--90%RH, no drips concreted IP22 Wall mounting | |
| Product Size | 210*139*65mm | |
| Package | Box size:21.9*7.4*14.7cm Carton size:45.5*31.5*32cm PCS/CTN:16 | |
1)what is your delivery time?
It takes 3-5 days for sample orders,and 15-20 days for orders.
2)How does your factory do the quality control?
Our production process follow up the ISO standard and we control the product quality from the raw materials to the finished product,each of our control panel will be fully assembled and strictly tested before packing and shipping.
