1.1KW Stainless Steel Water Pressure Booster Pump Controller

Intelligent Pump Controllers – A series are the new generation of intelligent water pump boards with all applications, using typical metering sensors in one unit, facilitating easy operation.

It is a practical, simple, compact and highly automated solution for the management of differential pressure systems, sewage systems, rainwater, residual ejectors and elevation, transfer or impulsion of water for one and two pumps, replacing the traditional panels that They are manufactured by basic protections in stainless steel boxes.

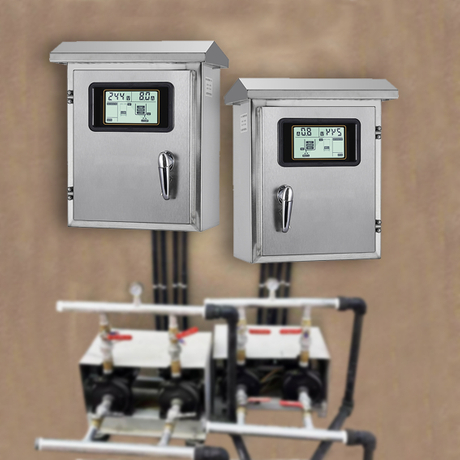

Typical application scenarios:

-Agricultural irrigation/ pumping

-Pressure Booster Systems

-Waste water treatment

-Water Tanks/Wells

-Drainage System

-Cooling Towers

-Flood Control

-Fishing Boat

Specifications of Intelligent Pump Control Panel

Type	A1
Model	A1-4KW	A1-7.5KW	A1-11KW	A1-15KW	A1-18.5KW	A1-22KW	A1-30KW
Rated Power	0.75-4KW	1.1-7.5KW	1.1-11KW	2.2-15KW	3-18.5KW	4-22KW	5.5-30KW
Rated Input Voltage	380V±10%/50Hz or 60Hz
Qty.of Controlled Pump	Single pump
Display	LCD display
Signal Transmission Mode	Float switch                                                                                          Probe                                                                           Pressure switch                                                                     Electric contact pressure gauge
Water Level Indication	High/Middle/Low
Max.Control Distance	≤2000m without strong electric and electromagnetic fields
Over/under-voltage Range	304-456V(adjustable)
Protections	Pump stalled protection Dry run protection Over-load protection Under-voltage protection Over-voltage protection Open phase protection Short circuit protection
Main Functions	Time setting Fault detection Anti-rust inspection Automatic restart after power recovery
Working temperature Working humidity Install position	-25ºC-- +55ºC 20%--90%RH, no drips concreted Wall mounting

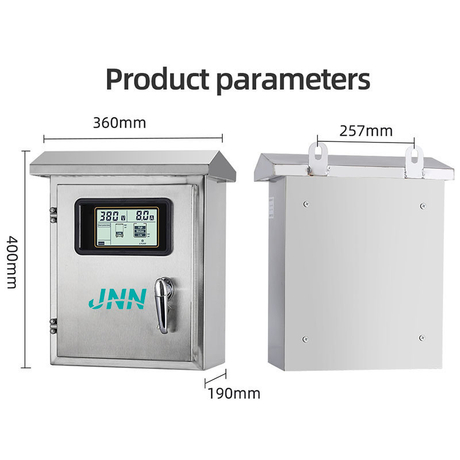

Product Size	400x300x190mm
Package	Box size:41.5x34x23cm Carton size:71x49.5x43cm PCS/CTN:4

1),How to convert HP into KW ?
The conversion formula as :1HP=0.74KW
for example: 3HP=3*0.74KW=2.2KW.

2)How to choose the power of your pump controller?
Normally we need choose bigger power to run the water pump or motors,.If the pump rated power is 4KW,Pump controller should choose 7.5KW.For Submersible pumps which used in the deep well,please check with us first .

3)Can I have the samples of your pump controller ?
Yes, we can send you the pump controller samples for your testing .
